Features
- 671, 447 nm
- 15 to 50 ns
- Up to 200 kHz active Q-Switch
- Up to 4W @ 671 nm
- Up to 2W @ 447 nm
- M2<1.5
- 532, 1064
- FHG option
- M2 < 1.5
- Compact air-cooled single unit
Applications
- Meterial processing
- Specialty marking
- LiDAR
- Medical
- Scientific

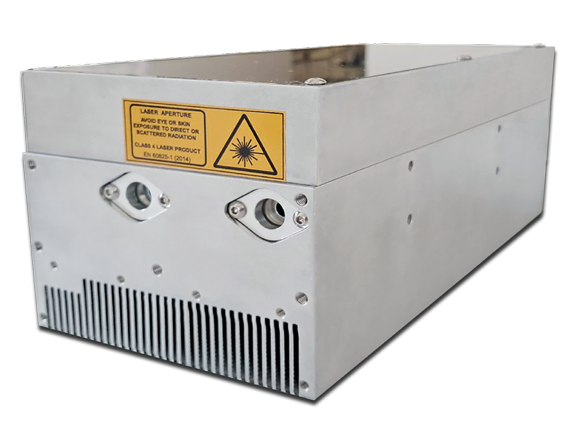

The Iris platform is based on an active Q-Switched DPSS technology and the Iris model generates laser pulses in the ns range up to 200 kHz repetition rate.
Most of the commercially available lasers emitting in the blue and red spectral regions are typically CW lasers with limited peak power: Iris represents a relevant innovation, providing unmatched peak pulse energy and superior beam quality at wavelengths of 671nm and 447nm.
With the introduction of Iris series, Bright Solutions enlarged its portfolio of active Q-Switched lasers, allowing the laser integrators and final users to explore new application field like LiDAR, spectroscopy, medical / diagnostics and special material processing.
Iris 671 and 447 nm have a compact air-cooled single-unit footprint and an IO interface compatible with the other laser models manufactured by Bright Solutions
Options available
- Dual wavelength configuration
- Beam expanding and collimating optics
- Pulse energy modulator
- Remote control cbox and software interface
- AC-DC power supply
