Features

  • Up to 200mJ @ 1064nm
  • Up to 100 mJ @ 532 nm
  • 10ns to 30 ns
  • 1064, 532, 355, 266 nm
  • Single shot up to 500 Hz
  • Burst mode operation
  • Multi-wavelength configurations
  • Custom beam shaping

Applications

  • Atmospheric LIDAR
  • Air-borne and space-borne instruments
  • LIBS
  • Microelectronics
  • FPD repair
  • Non-Linear spectroscopy

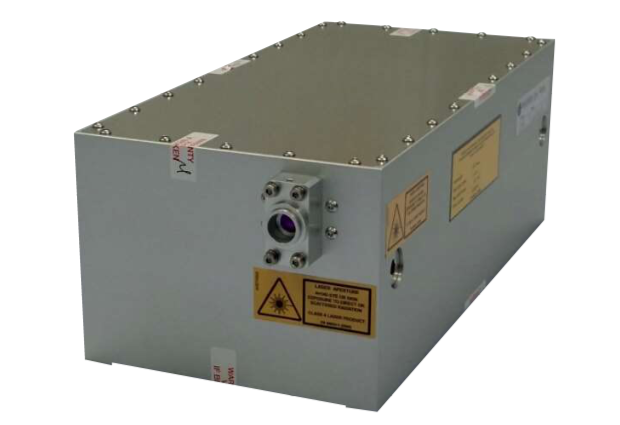

Aero
High Energy DPSS Lasers

The Aero is a high-energy product line operating in the ns range with repetition rate up to 500 Hz with the possibility to work in burst mode too. Pulse energy up to 200mJ at 1064nm and 100mJ at 532nm is achieved in a thermo-mechanically stable package. Customized systems have undergone severe vibration and qualification tests for operation in space. These Q-switched laser systems are ideal for atmospheric LIDAR, air-borne and space-borne instruments, micromachining and ablation processes, telemetry and LIBS. Recently also the UV versions have been developed and multiple wavelength-configurations are available.


Options available

  • Beam expanding and collimating optics
  • External beam separator and beam shaper
  • Extended operating temperature range
  • 28 v DC Input for airborne installation
  • Circular polarization
  • AC-DC power supply
