Sol

Compact Q-Switched DPSS Laser

Sol is the most compact Q-switched Diode Pumped Solid State laser available in the power range from 6W to 40W @ 1064nm.

Features

Up to 40W @ 1064nm
Up to 10W @ 532nm
Compact Q-Switched DPSS Laser
Compact Air-cooled Single Unit
Up to 200 kHz repetition rate
Electronic pulse energy modulation
Sealed and rugged
Monolithic design
24 V DC
RS232 monitor port

Application

Material Processing
Marking
Scribing
Thin film removal
Micro-machining
LIBS
ID card marking
Nonlinear optics
Medical and Aesthetic

Options available

Beam expanding and collimation optics
Multi-wavelength configurations
Multimodal fiber coupling
Low jitter option
Remote control box and software interface
AC-DC power supply

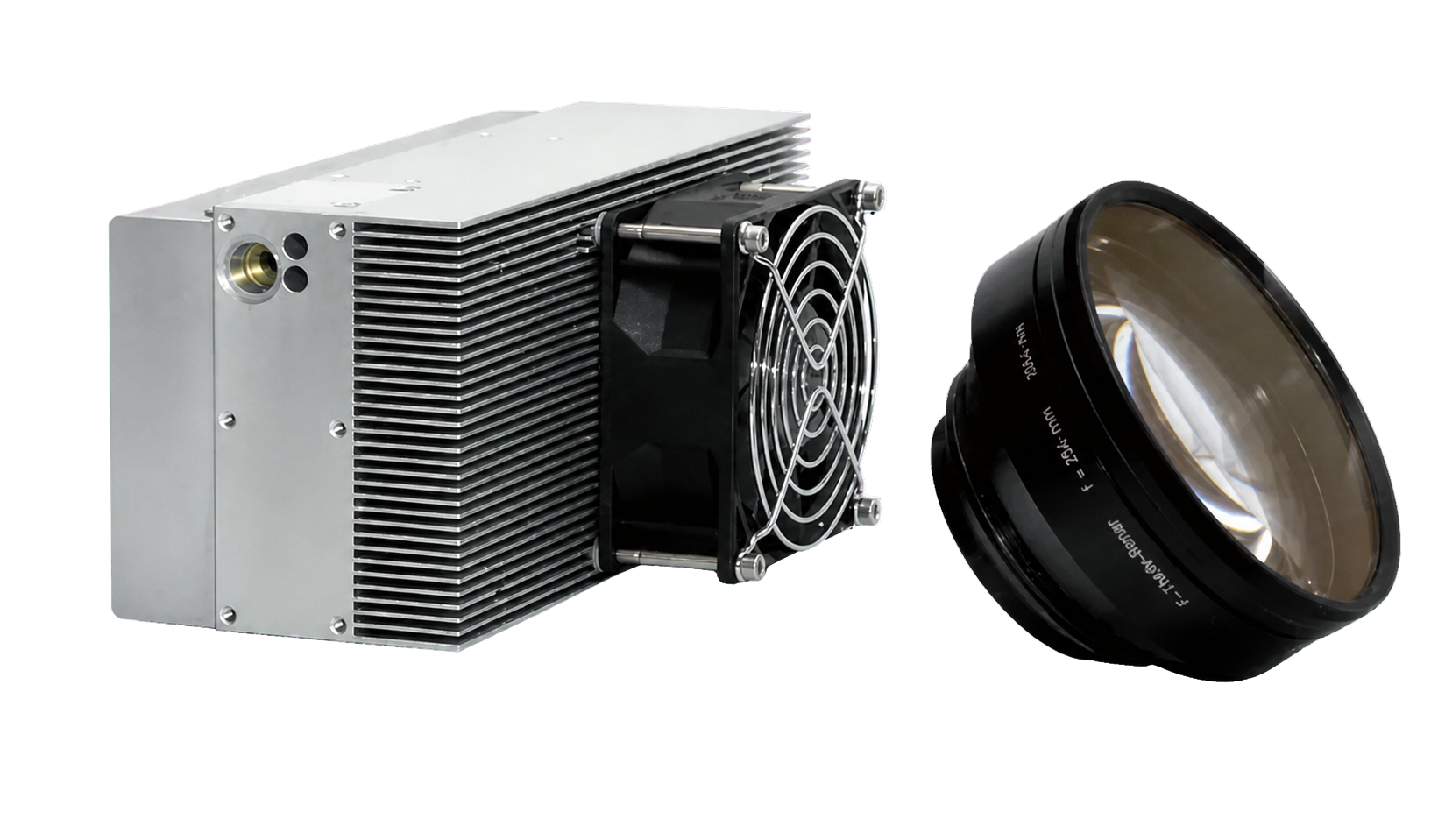

Sol is the most compact Q-switched Diode Pumped Solid State laser available in the power range from 6W to 40W @ 1064nm. Sol versions @ 532nn are also available with the same footprint. These air-cooled DPSS lasers are offered in a rugged and lightweight Single Unit, designed to allow easy and reliable integration in micro-machining and marking applications.

The Sol Single Unit Design is based on a permanently aligned Monolithic Optical Resonator integrated with 24 Vdc powered driving electronics. Cooling of the unit is provided by low noise fans.

Due to the Single Unit design, optical fibers and other delicate cable connections will not be necessary for system integration.

Compactness, insensitivity to environmental conditions and ease of handling guarantee superior operation flexibility and performance/cost ratio.

The high peak power and the excellent beam quality of Sol lasers make them the ideal source for the most demanding industrial and scientific applications.
